TIG Cold Wire Feeder | Model TIGer Process TP1002

Supplier: Weldmart Australia

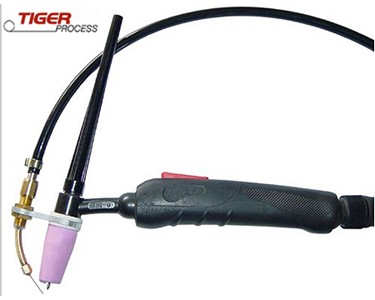

TIGer Process TP1002. TIG Cold Wire Feeder.

Introducing the TIGer T1002, the patented TIGer wire feeder turns manual TIG welding into a highly productive welding process, almost touching the speed of MIG in some applications.

Video for TIG Cold Wire Feeder | Model TIGer Process TP1002

The T1002 is a semi-automatic, cold wire-feed machine that is engineered to enhance productivity while improving TIG weld quality and efficiency and lowering the cost of your TIG welding operations.

Increases TIG welding productivity and quality by eliminating time consuming arc stop and starts common with cut length filler rod.
Save 20-40% on filler metal costs because spooled-wire is less expensive than individual cut-length rod, and the waste from unused rod ends is eliminated.
Spooled wire reduces process variables by providing quick and consistent filler metal verification, eliminating the potential for weld quality issues associated with unidentified welding alloys.

TP1002

Single phased power supply: 24VAC/50Hz absorbed power 100VA.
Safety door switch for improved protection against HF arc start.
Wire feeder: 2 rolls
Duty cycle : 260A to 60%
Drops/minute ; 660 air/water cooled water
Wire spool capacity: 5Kg steel/stainless steel Ø0.6 to 1.2mm. Alloys: Ø0.8 to 1.2mm. Cored wires: Ø0.9 to 1.2mm.
Dimensions in mm (LxWxH): 452x425x285

Standard Pack Composed of:

1 single motor wire feeder TP1002
1 connecting cable 4m 260amp, air/ water cooled
1 torch 4m, air cooled (water cooled option)
1 operating kit for torch

Requires:

1 Power Supply 240V/24V, 100VA

To contact Weldmart Australia about TIG Cold Wire Feeder | Model TIGer Process TP1002 use Get a quote.
