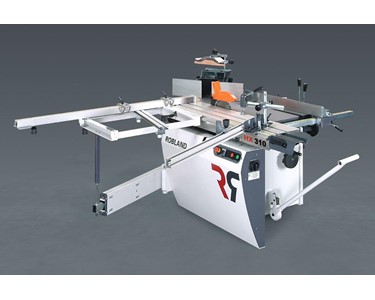

Robland - Robland HX 310 Combination Woodworking Machine Get latest price

Read more...

To contact Ron Mack Machinery Australia Pty Ltd about Robland Robland HX 310 Combination Woodworking Machine use Get a quote.

Robland HX 310 Pro Specifications:

SAW

• Motor power: 4 PS/hp (S6)
• Blade diameter & bore: 250x30mm, RPM: 4,500
• Cutting depth at 90°: 85mm, depth at 45°: 55mm
• Dimensions cast iron table: 1077x273mm
• Length sliding table: 1,250mm (option 2050mm)
• Cutting length: 1,450mm (option 2100mm)
• Width of sliding table: 320mm
• Spindle length: 180mm
• Cutting width parallel fence: 640mm
• Spindle speeds: 3000/4500/6000/7000/10000 RPM
• Max. diameter & height of table opening: 320x95mm
• Weight (TS/TL/TP): 560/655/1070kg

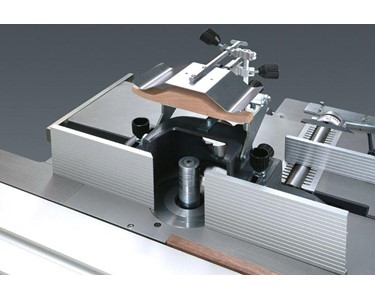

SPINDLE

• RPM 3-phase: 3,000/6000, RPM single phase: 6000
• Diameter spindle arbour: 30mm (option 50mm)
• Spindle arbour capacity: 120mm
• Travel: 140mm, table opening: 180mm
• Motor power: 4 PS/hp (S6)

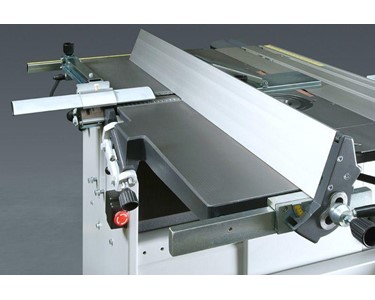

PLANER-THICKNESSER

• Total length planer tables: 1,230mm
• Capacity thicknesser: 230mm
• Cutter block diameter: 70mm, Knives: 3
• Knife dimensions: 310x25x3mm
• Feeding speed: 6m/min, RPM: 5,500
• Motor power: 4 PS/hp (S6)

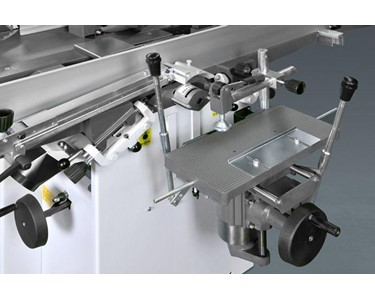

MORTICER (Option)

• Chuck: 0 to 16mmmm
• Travel: 165x140x85mm

Specifications (other):

• Power: 3-phase or 240V option
• Dust outlets: 100mm
• Weight (net): 539kg
